Trade Aluminium Window Sills & Cappings | Made-to-Measure
We manufacture aluminium cills, flashings, and trims directly from your app inputs. Explore the specifications below, download the app, and order in minutes.

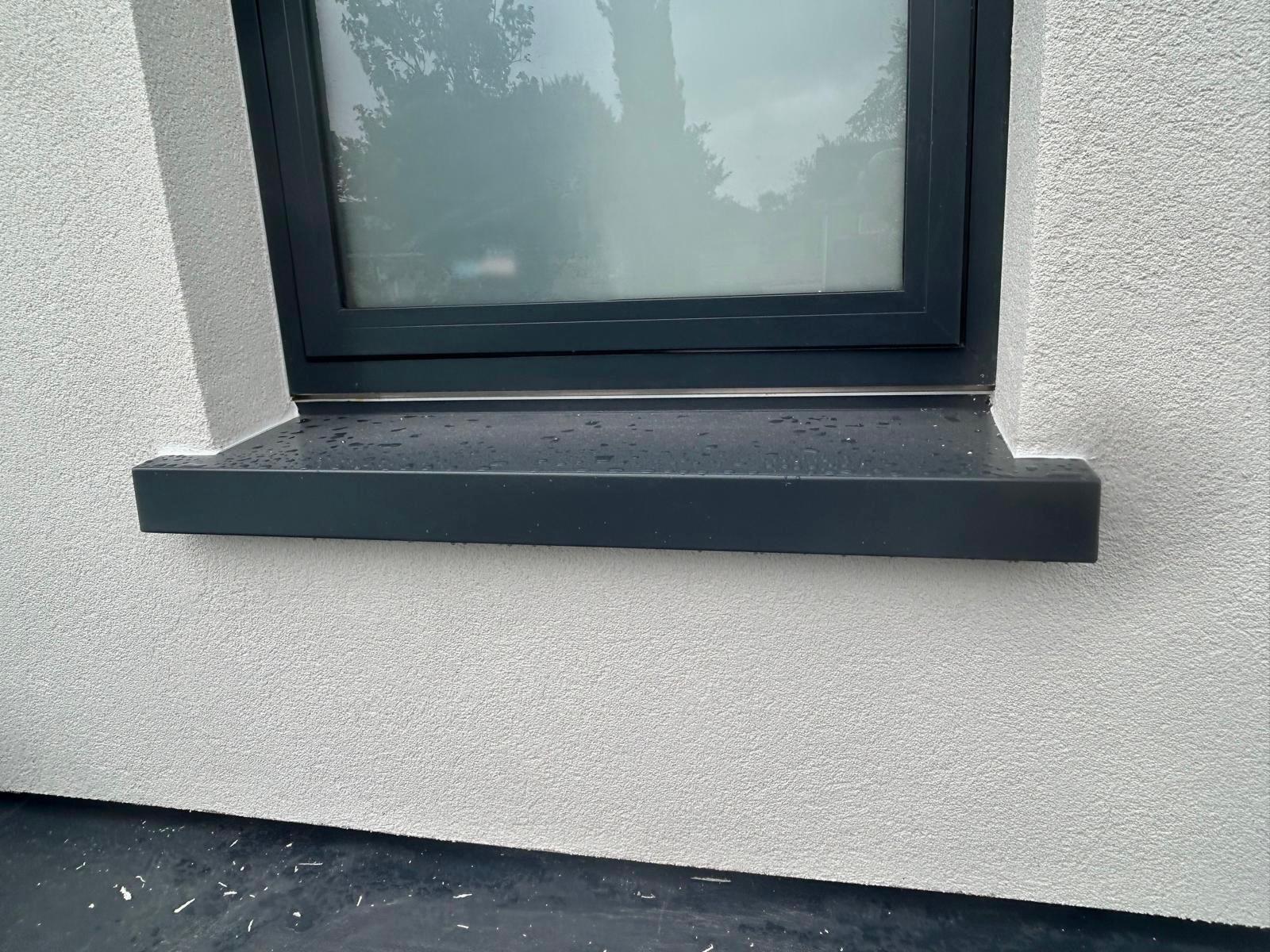

Window Cills & Sills
Made-to-measure standard and deep profile aluminium window cills.
The Problem Solved: Prevents water ingress and reveal damage caused by incorrect concrete sill fits or poor on-site adjustments.
How to Order in App: Select profile, input reveal dimensions in the Cills app, check the 3D model, and confirm.
Order in the Cills App →- Material: Heavy-duty 2mm marine-grade aluminium
- Colour: Powder-coated in any RAL colour
- Delivery: Nationwide in 3 to 5 days
- Compatibility: Designed for SEAI external insulation, ICF blockwork, new builds, and retrofits
Aluminium Flashings
Custom profile weatherproofing flashings.
The Problem Solved: Seals gaps at insulation reveals and roof-to-wall junctions to stop moisture penetration.
How to Order in App: Input your specific L, Z, or custom bend dimensions into the app configurator and see it render in 3D.
Order in the Cills App →- Material: 2mm marine-grade aluminium
- Colour: Powder-coated in any RAL colour
- Delivery: Nationwide in 3 to 5 days
- Compatibility: EWI insulation terminations, parapets, roof boundaries, and weatherproofing zones

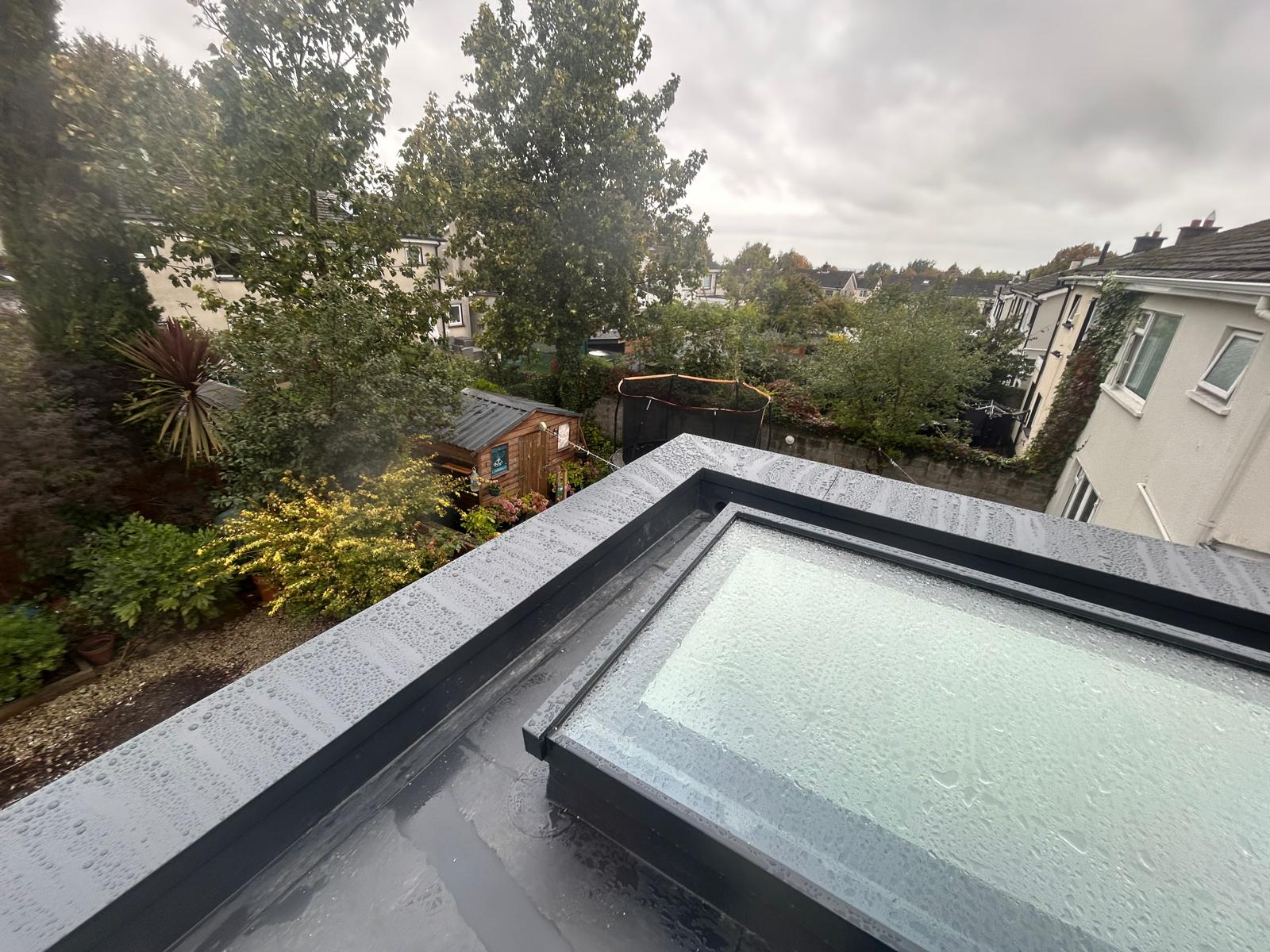

Cappings & Trims
Spec sheet of a parapet capping measured with the Cills app
Snap-on parapet wall cappings and architectural boundary trims.
The Problem Solved: Protects flat parapet walls from rain ingress while allowing for natural thermal expansion without leaks.
How to Order in App: Choose secret-fix or snap-on options in the app, confirm reveal widths, and place the order.
Order in the Cills App →- Material: 2mm to 3mm marine-grade aluminium
- Colour: Match window frames or cladding perfectly
- Delivery: Nationwide in 3 to 5 days
- Compatibility: Parapet walls, secret-fix boundaries, cladding joint systems

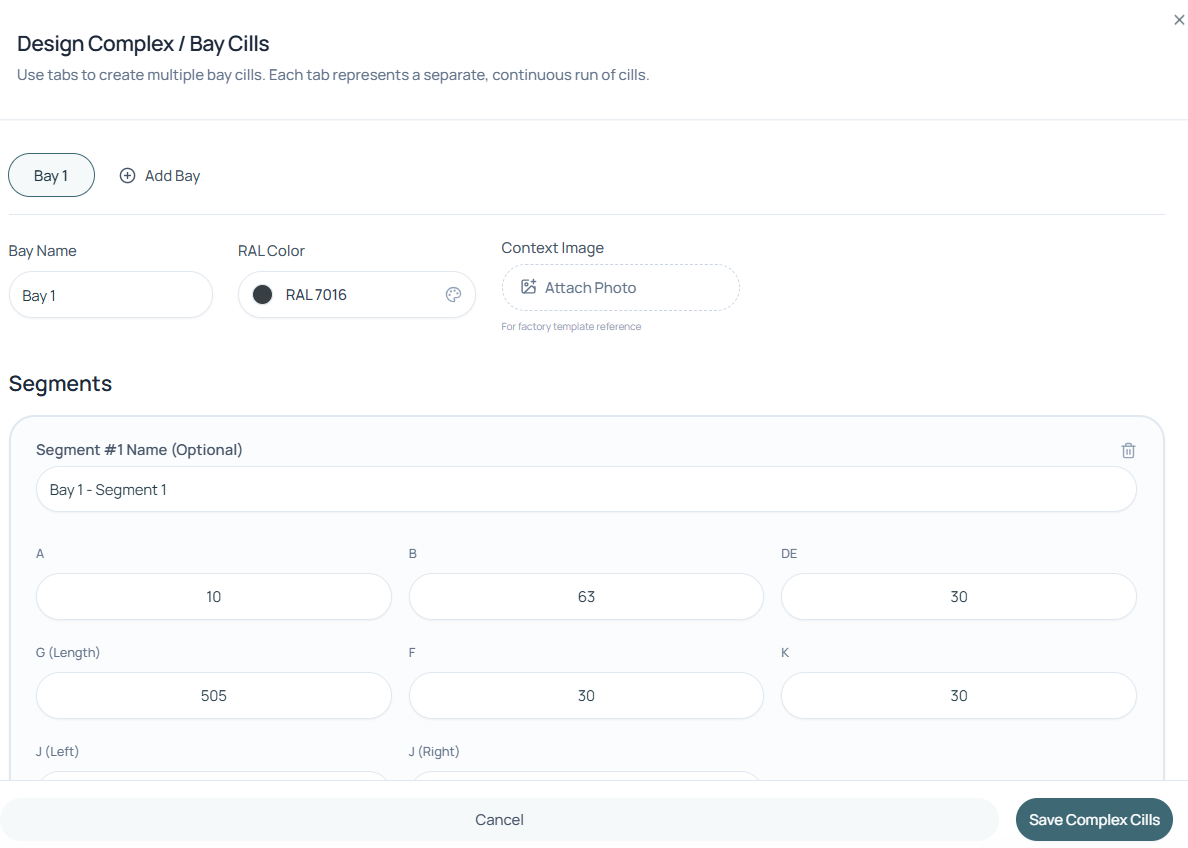

Bay & Complex Cills
Multi-segment bay window cills fabricated as a single seamless piece.
The Problem Solved: Eliminates joints and seam leaks on angled bay window openings.
How to Order in App: Enter your bay angles step-by-step in the app to configure a monolithic single-piece cill.
Order in the Cills App →- Material: 2mm marine-grade aluminium
- Colour: Powder-coated in any RAL colour
- Delivery: Nationwide in 3 to 5 days
- Compatibility: 90-degree corners, 135-degree bay windows, splayed bays, and custom reveal angles
RAL Powder Coating
Architectural-grade powder-coat finish matching any facade system.
The Problem Solved: Prevents paint peeling and ensures exact colour matching to window frames.
How to Order in App: Select your gloss level and input the RAL colour code during app configuration.
Order in the Cills App →- Material: Polyester Powder Coating (PPC) oven-cured at 200°C
- Colour: Complete RAL range (Anthracite 7016, Black 9005, White 9010, etc.)
- Delivery: Nationwide in 3 to 5 days (applied directly to ordered cills)
- Compatibility: Qualicoat Class 1 & 2 architectural standard
Custom Profiles
Bespoke non-standard profiles for architectural specifications.
The Problem Solved: Resolves complex building junctions and thermal bridging issues where standard cills cannot fit.
How to Order in App: Input custom variables or submit architectural drawings through the app's custom channel.
Order in the Cills App →- Material: 2mm to 3mm marine-grade aluminium
- Colour: Powder-coated in any RAL colour
- Delivery: Nationwide in 3 to 5 days
- Compatibility: Custom thermal break installations, ICF walls, column casing designs
ICF Window Sills
Preview of the ICF window tray product measured with the Cills app
Specialized aluminium window sills designed specifically for Insulated Concrete Formwork (ICF) systems.
The Problem Solved: Prevents leaks and moisture ingress into the thick EPS insulation core of ICF blocks while eliminating cold bridging.
How to Order in App: Select ICF profiles in the app, confirm reveal depths (up to 400mm+), review the 3D model, and order.
Order in the Cills App →- Material: Heavy-duty 2.0mm marine-grade aluminium
- Colour: Oven-cured powder coating in any RAL colour
- Delivery: Nationwide delivery in 3 to 5 working days
- Compatibility: Specifically built for ICF blocks, ICF reveals, and SEAI deep-reveal insulation profiles
// Get the App
The App That Ends Reorders.
Measure on site. Watch your product build in 3D. Order in minutes. Available free on iOS and Android.
// B2B Feedback
What Contractors Say
We work with leading residential developers, external wall insulation (EWI) installers, and commercial contractors across Ireland.
"Fabricator.ie and the Cills app have completely transformed our window sill specification. By scanning reveals and locking in 3D dimensions, we eliminated ordering errors entirely. Site measurement and fitting services are flawless."
"For retrofitted external insulation, reveal depths vary constantly. The ability to configure deep reveal aluminium cills (350mm+) with exact welded stop-ends and receive them in 3-5 days is a game changer for our schedules."
"We specify Fabricator.ie for our high-end residential and commercial projects. Their 2mm marine-grade alloy and Qualicoat powder coating finishes meet our strict specifications for coastal wind-load and salt-spray protection."
// Catalog FAQs
Aluminium Products & Specs
What is the standard lead time for custom profiles?
All custom products—including standard window sills, parapet cappings, and custom flashings—are fabricated to order and shipped within 3 to 5 working days to any site or yard in Ireland. Lead times for massive volume commercial orders can be discussed with our specification team.
Can you duplicate a hand-drawn or CAD profile?
Yes. In the Cills app, you can choose from a range of pre-configured profile shapes (L-bends, Z-bends, standard cills, etc.) and customize the leg lengths and angles. For completely bespoke shapes, you can upload CAD (DXF/DWG) files or PDF sketch drawings through our custom profile channel.
What are standard upstand and drip-edge heights?
Our standard window sills feature a 25mm rear upstand (to fix behind the window frame) and a 30mm to 40mm drip-edge face projection. Parapet cappings typically feature 70mm to 100mm side drops. However, because we manufacture to order, you can customize all of these dimensions in the app.
Are fixings and splice plates included?
Splice plates (for running joints), secret-fix brackets (for cappings), and matching powder-coated screws can be selected and added to your cart during configuration in the Cills app. We supply all necessary installation hardware to ensure a watertight B2B install.
